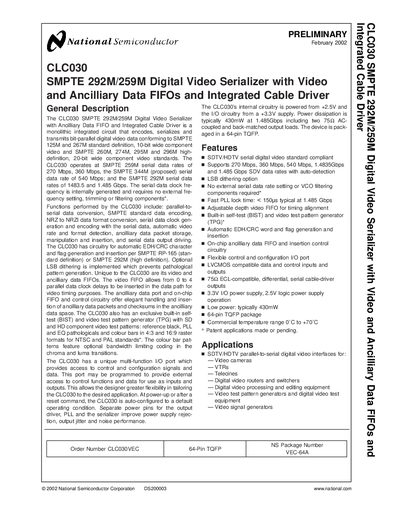

CLC030 is a monolithic integrated circuit that encodes, serializes and transmits bit-parallel digital video data conforming to SMPTE 125M and 267M standard definition, 10-bit wide component video and SMPTE 260M, 274M, 295M and 296M high-definition, 20-bit wide component video standards.
The CLC030 is a monolithic integrated circuit that encodes, serializes and transmits parallel digital video data for SMPTE 125M, 267M, 259M, 292M, 344M and related high‑definition standards. It includes on‑chip video and ancillary data FIFOs, a built‑in self‑test (BIST), a video test‑pattern generator and a flexible VO control port.
The document provides electrical characteristics, absolute maximum ratings, recommended operating conditions, layout recommendations, and application information such as the SD130EVK evaluation board. It also contains mechanical drawings, package dimensions, and a life‑support policy disclaimer.
| Supported serial data rates | 270 Mbps, 360 Mbps, 540 Mbps, 1.4835 Gbps, 1.485 Gbps |
|---|---|
| Typical power dissipation | 430 mW at 1.485 Gbps |
| Package | 64‑pin TQFP |
| Operating temperature range | 0 °C to +70 °C |
It supports 270 Mbps, 360 Mbps, 540 Mbps, 1.4835 Gbps and 1.485 Gbps serial data rates.
Typical power dissipation is 430 mW when operating at 1.485 Gbps.
The CLC030 is offered in a 64‑pin TQFP package.
