AD8192 is a 2:1 HDMI/DVI switch launched by ADI, which supports HDMI 1.3a, has ESD protection, supports data rates from 250Mbps to 2.25Gbps and pixel clocks from 25MHz to 225MHz, and can be used for front panel buffers, independent HDMI switches, multiple input displays, projectors, A/V receivers, and set-top boxes.
The AD8192 is a complete HDMI™/DVI link switch featuring equalized TMDS inputs and pre‑emphasized TMDS outputs, ideal for long‑cable applications. It supports two HDMI/DVI inputs and one output, includes bidirectional DDC and CEC buffering, and offers programmable input terminations.

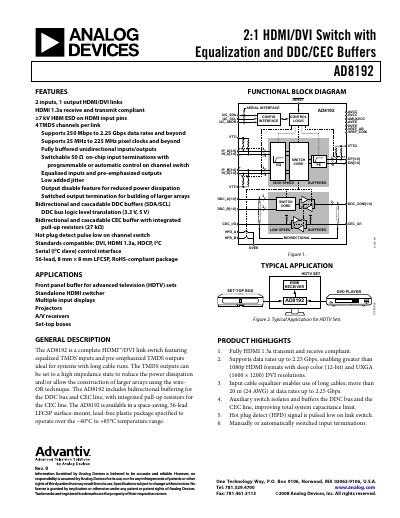

The handbook details electrical specifications, pin‑out descriptions, typical performance characteristics, and layout guidelines. It also includes ordering information, package dimensions, and application examples such as advanced TV front‑panel buffers and HDMI switchers.
| Input Voltage Swing Differential | 150‑1200 mV |
|---|---|
| Power Supply AVCC | 3.3 V ±5% |
| Operating Temperature Range | -40 °C to +85 °C |
The device provides two inputs and one output.
Yes, it has bidirectional buffering for both the DDC bus and the CEC line.
It operates from –40 °C to +85 °C.
