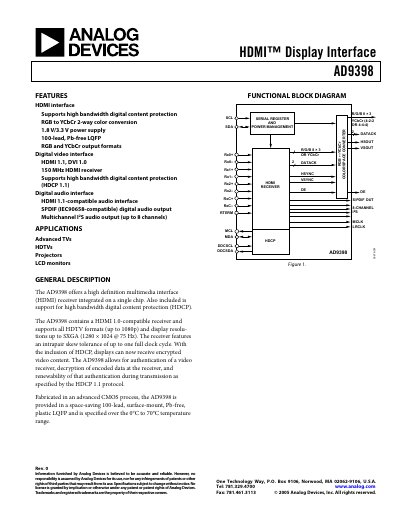

The AD9398 is a fully integrated HDMI/DVI receiver that supports HDCP encryption, color‑space conversion, and up to eight channels of audio. It is offered in a 100‑lead Pb‑free LQFP package and operates from 0 °C to 70 °C.
The document provides functional block diagrams, electrical characteristics, pin descriptions, power‑management modes, timing information, and design recommendations for PCB layout and external components. Applications include HDTV monitors, projectors, and video scan converters.
| HDMI receiver maximum frequency | 150 MHz |
|---|---|
| Operating temperature range | −25 °C to +85 °C |
The AD9398 HDMI receiver operates up to 150 MHz.
It operates from –25 °C up to +85 °C.
