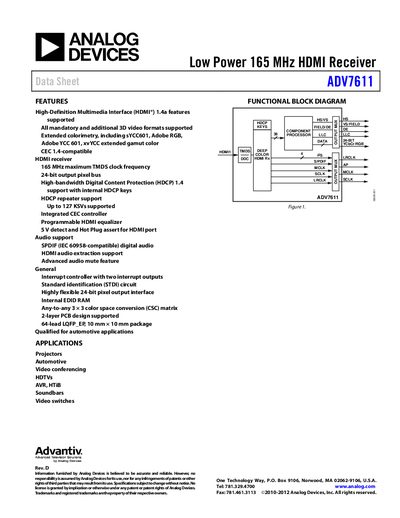

This data sheet describes the features and characteristics of the ADV7611 low power HDMI receiver.
The ADV7611 is a single‑input HDMI‑capable receiver offered for automotive, professional and industrial applications. It supports HDMI 1.4a features including 3D video formats, HDCP 1.4 with internal keys, and a built‑in CEC controller. Audio extraction, advanced mute control, and a programmable equalizer are provided, while the device operates over a temperature range of –40 °C to +85 °C.
The device is supplied in a 64‑lead LQFP_EP package (10 mm × 10 mm) and includes detailed specifications such as a 165 MHz TMDS clock limit, multiple power‑supply rails (DVDD 1.71‑1.89 V, DVDDIO 3.14‑3.46 V, etc.), and a full pin‑out with several 5 V‑tolerant pins. The datasheet contains functional block diagrams, electrical characteristics, timing tables, absolute maximum ratings, and thermal performance guidelines.
| Maximum TMDS clock frequency | 165 MHz |
|---|---|
| Operating temperature range | –40 °C to +85 °C |
| Package | 64‑lead LQFP_EP, 10 mm × 10 mm |
| Digital Core Power Supply (DVDD) | 1.71 V – 1.89 V |
| HDCP support | HDCP 1.4 with internal keys |
The device supports a maximum TMDS clock frequency of 165 MHz.
It operates from –40 °C up to +85 °C.
The pins DDCA_SCL, DDC_SDA, and RXA_5V are 5 V tolerant.
It is supplied in a 64‑lead LQFP_EP package measuring 10 mm × 10 mm.
