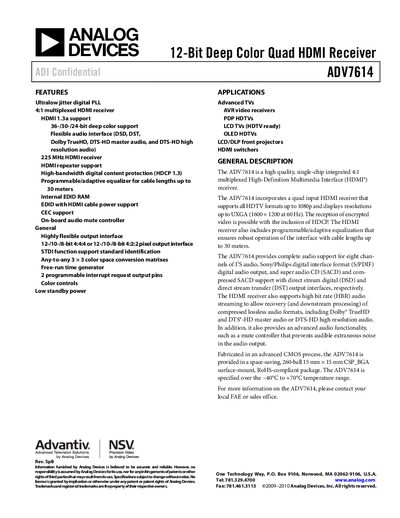

12-Bit Deep Color Quad HDMI Receiver ADI Confidential ADV7614 Rev. SpB is a high performance HDMI receiver from Analog Devices that supports 4:1 multiplexing and offers 36/30/24 bit deep color support.
The ADV7614 is a high‑quality, single‑chip 4:1 multiplexed HDMI receiver supporting HDMI 1.3a, deep‑color modes up to 36‑bit, and HDCP 1.3 protection. It offers ultralow jitter digital PLL, programmable equalizer for cable runs up to 30 m, and a flexible audio interface covering DSD, DST, Dolby TrueHD, and DTS‑HD formats.
Typical applications include advanced TVs, AVR video receivers, LCD/LED HDTVs, projectors, and HDMI switchers. The device is supplied in a 260‑ball 15 mm × 15 mm CSP_BGA package and operates from –40 °C to +70 °C.
| HDMI receiver type | 4:1 multiplexed |
|---|---|
| HDMI version support | HDMI 1.3a |
| Deep color support | 36-/30-/24-bit |
| Jitter performance | Ultralow jitter digital PLL |
| HDCP protection | HDCP 1.3 |
| Maximum cable length | 30 meters |
| Package | 260‑ball 15 mm × 15 mm CSP_BGA |
| Operating temperature range | -40 °C to +70 °C |
| Audio interface | DSD, DST, Dolby TrueHD, DTS‑HD |
| Pixel output interface | 12/10/8‑bit 4:4:4 or 4:2:2 |
It supports HDMI 1.3a.
The device can operate with cable lengths up to 30 meters.
It supports DSD, DST, Dolby TrueHD, and DTS‑HD master and high‑resolution audio.
