The ADV3002 is a complete HDMI™/DVI link switch featuring equalized transition minimized differential signaling (TMDS) inputs, ideal for systems with long cable runs.
The ADV3002 HDMI/DVI switch provides four HDMI/DVI inputs and one output, featuring +8 kV ESD protection, input equalization for long cables, bidirectional DDC and CEC buffers, and EDID replication to reduce component count. It is supplied in an 80‑lead LQFP package and operates from 0 °C to 85 °C.

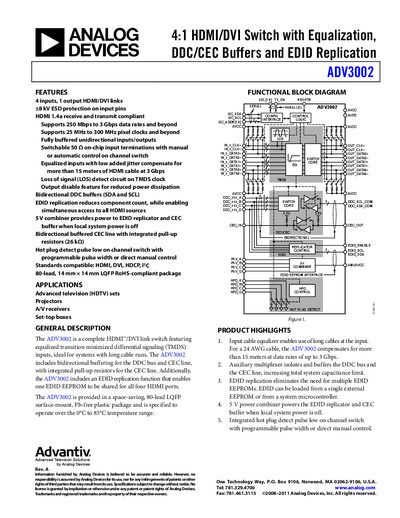

The datasheet details electrical specifications such as a maximum data rate of 3 Gbps, power‑supply ranges, pin configurations, thermal resistance, and ordering information. Applications include advanced television sets, projectors, A/V receivers, and set‑top boxes.
| Maximum Data Rate per Channel | 3 Gbps |
|---|---|
| Maximum Clock Rate | 300 MHz |
| Input Termination Resistance | 50 Ω |
| AVCC Operating Range | 3.0 V – 3.6 V |
The ADV3002 supports a maximum data rate of 3 Gbps per channel.
It provides four HDMI/DVI inputs and one output.
The device includes +8 kV ESD protection on its input pins.
It is supplied in an 80‑lead, 14 mm × 14 mm LQFP RoHS‑compliant package.
