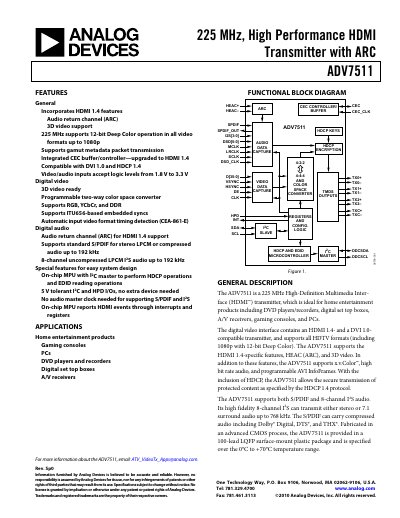

This is a 225 MHz, high performance HDMI transmitter with ARC function, model ADV7511 Rev. Sp0. The product has HDMI 1.4, ARC, 3D video support, 225 MHz, 12-bit deep color operation, supports all video formats up to 1080p, supports color gamut metadata packet transmission, integrated CEC buffer/controller, compatible with DVI 1.0 and HDCP 1.4.
The ADV7511 is a 225 MHz high‑performance HDMI transmitter that incorporates HDMI 1.4 features such as Audio Return Channel (ARC), 3D video support, and 12‑bit Deep Color operation across all video formats up to 1080p. It includes an on‑chip MPU with I²C master for HDCP and EDID handling, and supports both S/PDIF and 8‑channel I²S audio streams.
Designed for home‑entertainment products, gaming consoles, PCs, DVD players/recorders, digital set‑top boxes and A/V receivers, the device is supplied in a 100‑lead LQFP surface‑mount package and operates from 0 °C to +70 °C.
| Operating Frequency | 225 MHz |
|---|---|
| HDMI Version | HDMI 1.4 |
| Deep Color | 12‑bit |
| Maximum Video Resolution | 1080p |
| Audio (S/PDIF) Capability | Stereo LPCM or compressed audio up to 192 kHz, 8‑channel LPCM |
| Package | 100‑lead LQFP |
| Operating Temperature Range | 0 °C to +70 °C |
It supports HDMI 1.4 features, including Audio Return Channel (ARC) and 3D video.
It supports standard S/PDIF for stereo LPCM or compressed audio up to 192 kHz and 8‑channel I²S audio up to 768 kHz.
Home‑entertainment products, gaming consoles, PCs, DVD players/recorders, digital set‑top boxes and A/V receivers.
