The ADV7513 is a 165MHz high-performance HDMI transmitter that supports HDMI v1.4 features, including 3D video support. It supports all video formats up to 1080p and UXGA and supports gamut metadata packet transmission. The transmitter integrates a CEC buffer/controller and is compatible with DVI v1.0 and HDCP v1.4. Video/audio inputs accept logic levels from 1.8 V to 3.3 V.
The ADV7513 is a 165 MHz HDMI transmitter designed for DVD players, set‑top boxes, A/V receivers, gaming consoles and PCs. It supports HDMI v1.4 features including 3D video, high‑bit‑rate audio and HDCP v1.4 content protection.

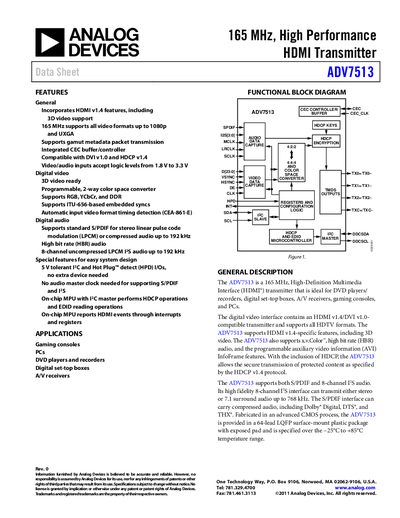

The document provides detailed electrical specifications, pin configuration, functional block diagram and design resources for engineers integrating the device into their products.
| Digital Input High Voltage | 1.35 V – 3.5 V |
|---|---|
| Digital Input Low Voltage | -0.3 V – +0.7 V |
| TMDS Output Clock Frequency | 165 MHz |
| 1.8 V Supply Voltage (DVDD, AVDD) | Typical 1.8 V (1.71 V – 1.90 V) |
| Ambient Temperature Range | -25 °C to +85 °C |
It supports all video formats up to 1080p and UXGA.
It supports standard S/PDIF for stereo LPCM and up to 8‑channel uncompressed LPCM audio up to 192 kHz.
