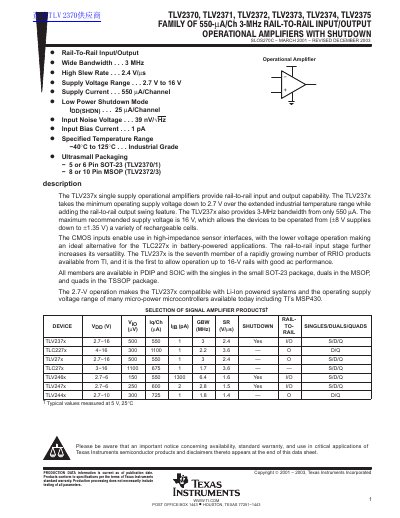

This document is a TI company's TLV237x series single supply operational amplifier user manual, which mainly introduces the features and characteristics of the series products, including supply range, input and output characteristics, noise characteristics, etc.
The TLV237x operational amplifiers provide rail‑to‑rail input and output capability, operating from a single supply as low as 2.7 V up to 16 V. They feature a 3‑MHz unity‑gain bandwidth, 2.4 V/µs slew rate, and only 550 µA supply current per channel, making them suitable for battery‑powered applications.
The family is offered in multiple package options (SOT‑23, MSOP, TSSOP, PDIP, SOIC) and includes single, dual, and quad configurations. Detailed electrical characteristics, absolute‑maximum ratings, and typical performance graphs are provided for designers.
| Supply voltage range | 2.7 V to 16 V |
|---|---|
| Supply current per channel | 550 µA |
| Slew rate | 2.4 V/µs |
| Input noise voltage | 39 nV/√Hz |
The TLV237x operates from 2.7 V up to 16 V supply voltage.
Each channel draws 550 µA of supply current.
The typical slew rate is 2.4 V/µs.
