The THS413x is a fully-differential input/differential output device fabricated using Texas Instruments’ state-of-the-art BiComI complementary bipolar process. The THS413x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
The THS4130 and THS4131 amplifiers provide high‑performance, fully‑differential signal paths for applications such as single‑ended to differential conversion, differential ADC drivers, and high‑speed transmitters. They feature low input‑referred noise, wide power‑supply range, and excellent common‑mode rejection.

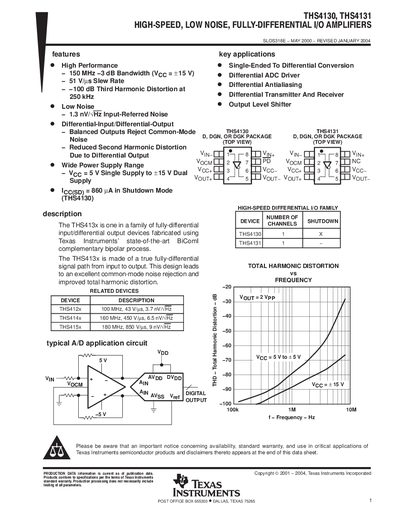

The datasheet includes absolute maximum ratings, recommended operating conditions, electrical characteristics (gain, bandwidth, slew rate, noise), power‑supply specifications, typical performance graphs, mechanical dimensions, and an important notice on warranty and product availability.
| Input‑referred noise | 1.3 nV/√Hz |
|---|---|
| Supply voltage range (single supply) | 5 V to 30 V |
| Operating temperature range (C‑suffix packages) | -40°C to 85°C |
The typical input‑referred noise is 1.3 nV/√Hz.
They can operate from a single supply of 5 V up to 30 V.
The C‑suffix package is rated for –40 °C to 85 °C operating temperature.
