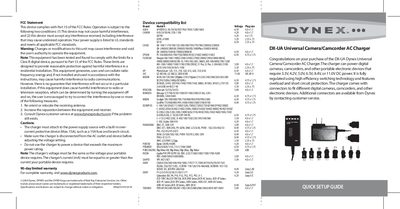

This document is a quick setup guide that contains a list of compatible devices, including brand, model, voltage, and plug size.
The DX‑UA Universal Camera/Camcorder AC Charger supplies 3.3 V to 11 V DC power for a wide range of digital cameras, camcorders and other portable devices. It features high‑efficiency switching regulation, overload and short‑circuit protection, and interchangeable connectors that match the device’s power jack. Additional connectors are available from Dynex customer service.
The manual includes important safety warnings, a quick‑setup guide, and detailed specifications. Users are instructed to select the correct connector, set the appropriate voltage, and verify the output current does not exceed the charger’s limits. Reset instructions are provided if the power indicator turns off, and contact information for Dynex support is listed.
| AC adapter input | 100‑240V AC, 50‑60Hz |
|---|---|
| AC adapter output | 15V DC, 1.0A |
| DX‑UA input voltage | 12‑15V DC |
| Output voltage options | 3.3 V, 4.2 V, 5.0 V, 6.5 V, 8.4 V, 11.0 V DC |
| Maximum output current (3.3 V) | 2.1 A |
| Maximum output current (4.2 V) | 2.0 A |
| Maximum output current (5.0 V) | 1.94 A |
| DC cord length | 8.2 ft (2.5 m) |
| Storage temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Dimensions | 4 × 2.1 × 1.4 inches (10.16 × 5.33 × 3.56 cm) |
The charger can be set to 3.3 V, 4.2 V, 5.0 V, 6.5 V, 8.4 V, or 11.0 V DC using the output voltage switch.
Do not expose the charger to rain or moisture, do not remove the cover, and ensure the charger is connected to a protected AC source with an over‑current device.
The DC cord is 8.2 feet (2.5 meters) long.
