The BZG01 series is a voltage regulator diode produced by Philips Semiconductors. It has the following features: glass passivated, high maximum operating temperature, ideal for surface mount automotive applications, low leakage current, excellent stability, UL 94V-O classified plastic package, complete range of zener working voltage, 12 mm embossed tape and reel, 1500 and 7500 pieces, marking: cathode, date code, type name, easy to pick and place

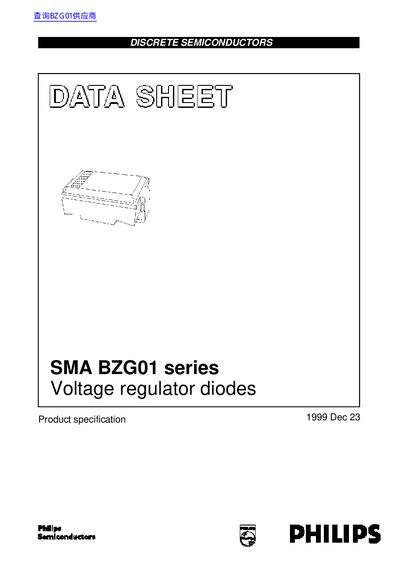

This datasheet describes the SMA BZG01 series voltage regulator diodes from Philips Semiconductors. It includes features such as a void‑free case, surface‑mountable DO‑214AC package, low leakage current, and excellent stability, suitable for automotive applications.
The document lists detailed electrical characteristics (forward voltage, Zener voltage range, reverse current), thermal limits (maximum power dissipation, storage temperature, junction temperature), and mechanical data (package outline, dimensions, mounting recommendations). It also contains graphical data and definitions of the specification status.
| Maximum total power dissipation (Tj = 25 °C) | 2.50 W |
|---|---|
| Storage temperature range | -65 °C to +175 °C |
| Junction temperature range | -65 °C to +175 °C |
| Forward voltage at 0.1 A | 1.2 V |
The maximum total power dissipation is 2.50 W when the junction temperature is 25 °C.
The devices can be stored between –65 °C and +175 °C.
