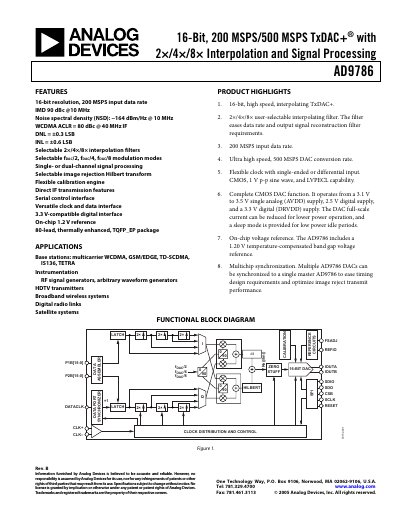

The AD9786 is a 16-bit, 200 MSPS/500 MSPS TxDAC+® with 2×/4×/8× interpolation and signal processing capabilities. It features high resolution, low distortion, low noise, and a flexible calibration engine.
The AD9786 is a 16‑bit CMOS digital‑to‑analog converter designed for communications applications such as multicarrier base stations and RF signal generators. It offers selectable interpolation filters (2×, 4×, 8×) and multiple modulation modes, providing flexible clock and data interfaces.
The device operates from 3.1‑3.5 V analog supply and 2.5 V digital supplies, delivering a full‑scale output current of 10‑20 mA. It includes an on‑chip 1.20 V reference, a comprehensive calibration engine, and supports multichip synchronization for master‑slave configurations.
| Resolution | 16 Bits |
|---|---|
| Maximum DAC output update rate | 500 MSPS |
| Full‑scale output current | 10 mA – 20 mA |
| Supply voltage (AVDD) | 3.1 V – 3.5 V |
| Power dissipation (typical) | 1.25 W |
The AD9786 provides a 16‑bit resolution.
The device can update its DAC output at up to 500 MSPS.
AVDD must be between 3.1 V and 3.5 V.
The full‑scale output current is specified as 10 mA to 20 mA.
