AD5546/AD5556 are 16-bit/14-bit multiplying DACs with four-quadrant resistors, current output, and parallel input. AD5546/AD5556 can be configured as four-quadrant multipliers for a variety of applications, including automatic test equipment, instrumentation, digital waveform generators, and digitally controlled calibration.
The AD5546 and AD5556 are precision 16‑/14‑bit multiplying DACs with four‑quadrant resistor networks, offering low‑power current‑output operation from a single 2.7 V to 5.5 V supply. They provide ±10 V output ranges, built‑in feedback and resistor networks, and are packaged in a compact TSSOP‑28.

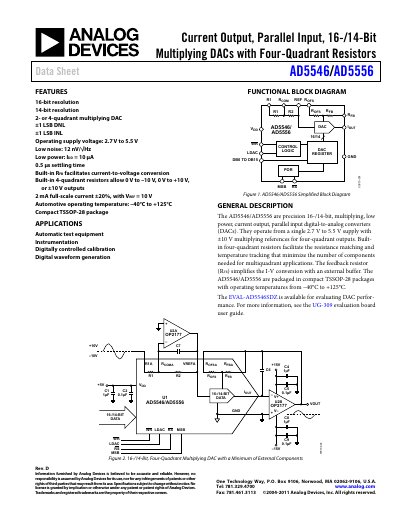

Typical applications include automatic test equipment, instrumentation, digitally controlled calibration, and waveform generation. The datasheet includes functional block diagrams, electrical characteristics, timing diagrams, pin descriptions, and ordering information.
| Resolution | 16 bits (AD5546) / 14 bits (AD5556) |
|---|---|
| Supply Voltage | 2.7 V to 5.5 V |
| Full‑Scale Output Current | 2 mA |
| Power Consumption | 10 µA (IDD) |
| Settling Time | 0.5 µs |
| Operating Temperature Range | –40 °C to +125 °C |
| Logic Input High Voltage (5 V supply) | 2.4 V |
| Input Leakage Current | 10 µA |
| Output Noise Density | 12 nV/√Hz |
The devices operate from a single supply of 2.7 V to 5.5 V.
Both DACs provide a full‑scale output current of 2 mA.
The settling time is specified as 0.5 µs.
They are rated for operation from –40 °C up to +125 °C.
