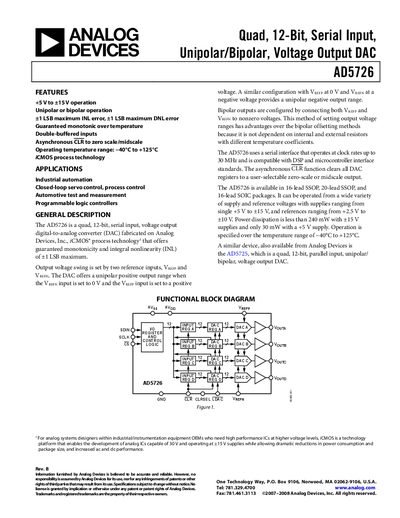

The AD5726 is a quad, 12-bit, serial input, voltage output digital-to-analog converter (DAC) fabricated on Analog Devices, Inc., iCMOS® process technology1 that offers guaranteed monotonicity and integral nonlinearity (INL) of ±1 LSB maximum. Output voltage swing is set by two reference inputs, VREFP and VREFN. The DAC has four independent outputs, providing the flexibility of obtaining multiple analog outputs from a single DAC chip. The AD5726 is fabricated using Analog Devices' iCMOS® process technology, which combines the low power and speed advantages of CMOS with the low noise and high linearity advantages of BiCMOS. In addition, iCMOS® technology provides higher gain-bandwidth product (GBW), resulting in superior performance.
The AD5726 from Analog Devices is a quad, 12‑bit, serial‑input digital‑to‑analog converter offering both unipolar and bipolar voltage output ranges. It operates from +5 V to +15 V supplies and supports reference inputs from ±2.5 V to ±10 V, providing flexible output configurations.
Key features include ±1 LSB INL/DNL accuracy, double‑buffered inputs, asynchronous clear, and a maximum serial clock rate of 30 MHz. The device is available in 16‑lead SSOP, 20‑lead SSOP, and 16‑lead SOIC packages, with power dissipation under 240 mW at +15 V supply.
| Resolution | 12 Bits |
|---|---|
| Relative Accuracy (INL) | +1 LSB max (Y grade) |
| Output Current (±15 V supply) | +5 mA max |
| Power Dissipation (±15 V supply) | 240 mW max |
| Supply Voltage Range | +5 V to +15 V |
| Operating Temperature Range | –40 °C to +125 °C |
| Maximum Serial Clock Rate | 30 MHz |
The AD5726 operates from +5 V up to +15 V supplies.
It provides a 12‑bit resolution.
The device can source up to +5 mA of output current.
The serial interface can run at clock rates up to 30 MHz.
