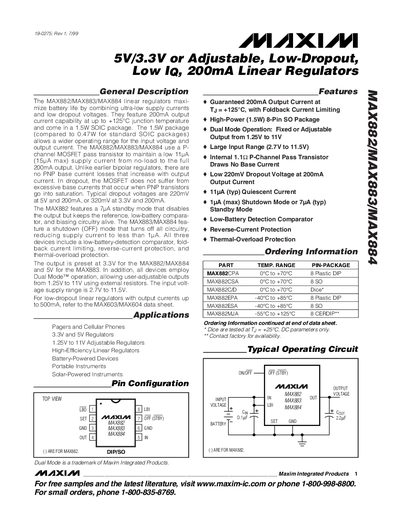

The MAX882/MAX883/MAX884 linear regulators maximize battery life by combining ultra-low supply currents and low dropout voltages. They feature 200mA output current capability at up to +125°C junction temperature and come in a 1.5W SOIC package. The 1.5W package (compared to 0.47W for standard SOIC packages) allows a wider operating range for the input voltage and output current. The MAX882/MAX883/MAX884 use a P-channel MOSFET pass transistor to maintain a low 11µA (15µA max) supply current from no-load to the full 200mA output. Unlike earlier bipolar regulators, there are no PNP base current losses that increase with output current. In dropout, the MOSFET does not suffer from excessive base currents that occur when PNP transistors go into saturation. Typical dropout voltages are 220mV at 5V and 200mA, or 320mV at 3.3V and 200mA. The MAX882 features a 7µA standby mode that disables the output but keeps the reference, low-battery comparator, and biasing circuitry alive. The MAX883/MAX884 feature a shutdown (OFF) mode that turns off all circuitry, reducing supply current to less than 1µA. All three devices include a low-battery-detection comparator, foldback current limiting, reverse-current protection, and thermal-overload protection. The output is preset at 3.3V for the MAX882/MAX884 and 5V for the MAX883. In addition, all devices employ Dual Mode™ operation, allowing user-adjustable outputs from 1.25V to 11V using external resistors.
The MAX882, MAX883, and MAX884 are micropower, low‑dropout linear regulators designed for battery‑powered applications. They provide up to 200 mA output current, operate from 2.7 V to 11.5 V input, and feature a P‑channel MOSFET pass transistor for very low quiescent current.
Key features include Dual‑Mode operation (fixed 3.3 V or 5 V or adjustable 1.25 V‑11 V), standby mode (7 µA typical), shutdown mode (<1 pA), fold‑back current limiting, reverse‑current protection, and thermal‑overload protection. The devices are supplied in a 1.5 W 8‑pin SOIC package.
| Maximum Output Current | 200 mA |
|---|---|
| Dropout Voltage (200 mA) | 220 mV at 5 V |
| Quiescent Current (typical) | 11 pA |
| Standby Mode Quiescent Current | 7 µA (typ) |
| Shutdown Mode Current | <1 pA |
| Input Voltage Range | 2.7 V – 11.5 V |
| Package | 1.5 W 8‑pin SOIC |
The MAX882 standby mode draws about 7 µA typical quiescent current.
The regulators can operate with an input voltage up to 11.5 V.
They are supplied in a 1.5 W 8‑pin SOIC package.
