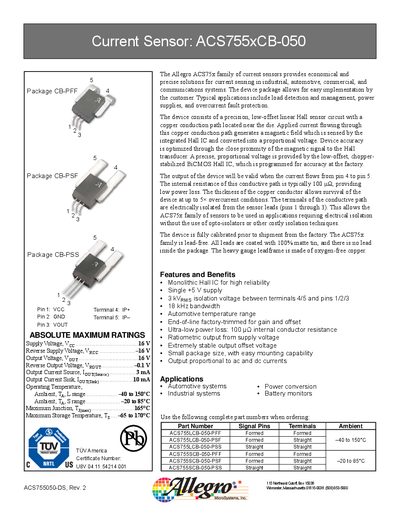

This document introduces the ACS755xCB-050 current sensor, including its supply voltage, output voltage, operating temperature range, and other characteristics. The product features high reliability, single +5V supply, 3kVRMS isolation voltage, 18kHz bandwidth, and is suitable for automotive systems, industrial systems, power conversion, battery monitoring, and other applications.
The ACS755xCB-050 is a Hall‑effect current sensor that converts primary current flowing through a copper conductor into a proportional voltage. It offers electrical isolation between the sensed current path and the sensor pins, making it suitable for automotive, industrial, power‑conversion, and battery‑monitoring applications.
Key specifications include a 5 V supply voltage, a 0‑50 A primary current range, 3 kV isolation voltage, 18 kHz bandwidth, and a sensitivity of about 60 mV/A. The device is supplied in CB‑PSF, CB‑PSS, and CB‑PFF packages and meets UL 94V‑0 flammability and UL‑60950‑1 safety standards.
| Primary Sensed Current | 0 A – 50 A |
|---|
It can sense primary currents from 0 A up to 50 A.
