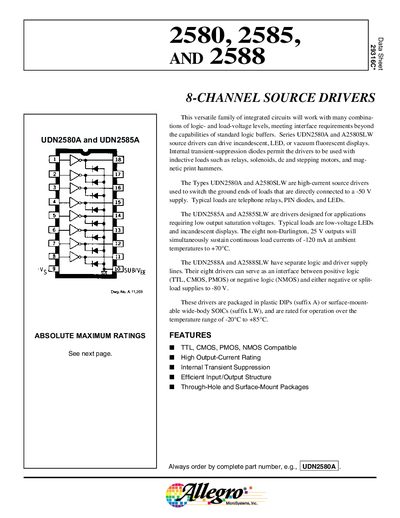

UDN2580 series is a versatile integrated circuit that can work with many combinations of logic and load voltage levels, meeting interface requirements beyond the capabilities of standard logic buffers. UDN2580A and A2580SLW source drivers can drive incandescent, LED, or vacuum fluorescent displays. Internal transient-suppression diodes permit the drivers to be used with inductive loads such as relays, solenoids, dc and stepping motors, and mag- netic print hammers. The Types UDN2580A and A2580SLW are high-current source drivers used to switch the ground ends of loads that are directly connected to a -50 V supply. Typical loads are telephone relays, PIN diodes, and LEDs. The UDN2585A and A2585SLW are drivers designed for applications requiring low output saturation voltages. Typical loads are low-voltage LEDs and incandescent displays. The eight non-Darlington, 25 V outputs will simultaneously sustain continuous load currents of -120 mA at ambient temperatures to +70°C. The UDN2588A and A2588SLW have separate logic and driver supply lines. Their eight drivers can serve as an interface between positive logic (TTL, CMOS, PMOS) or negative logic (NMOS) and either negative or split- load supplies to -80 V. These drivers are packaged in plastic DlPs (suffix A) or surface-mount- able wide-body SOlCs (suffix LW), and are rated for operation over the temperature range of -20°C to +85°C. FEATURES I TTL, CMOS, PMOS, NMOS Compatible I High Output-Current Rating I Internal Transient Sup
The document describes a versatile family of integrated circuits designed as high-current source drivers. These devices are capable of driving various loads including incandescent displays, LEDs, vacuum fluorescent displays, relays, solenoids, and stepper motors. The series includes specific types for different voltage requirements: the UDN2580A handles up to -50V supply, the UDN2585A is optimized for low output saturation voltages at 25V, and the UDN2588A features separate logic and driver supply lines.
| Output Voltage (Voce) | 50 V, 25V, or 80V depending on type |
|---|---|
| Supply Voltage (Vg) | 50V, 25V, or 80V depending on type |
| Operating Temperature Range | -20°C to +85°C |
| Total Output Current | -500 mA, -250 mA, or -500 mA depending on type |
| Input Capacitance | 25 pF |
These drivers can work with incandescent, LED, or vacuum fluorescent displays, as well as inductive loads like relays and stepper motors.
Yes, the devices are compatible with TTL, CMOS, PMOS, and NMOS logic.
They are available in plastic DIPs (suffix A) or surface-mountable wide-body SOICs (suffix LW).
