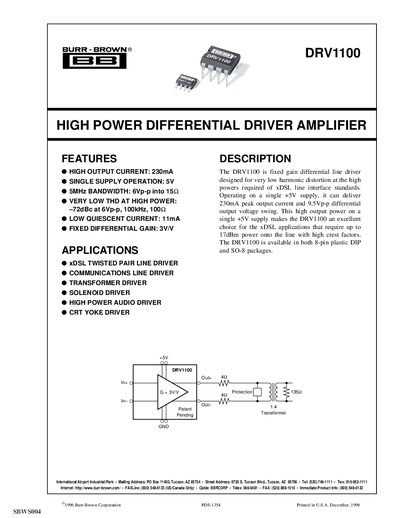

The DRV1100 is a fixed gain differential line driver designed for very low harmonic distortion at the high powers required of xDSL line interface standards. Operating on a single +5V supply, it can deliver 230mA peak output current and 9.5Vp-p differential output voltage swing.
The DRV1100 is a fixed‑gain differential line driver designed for low harmonic distortion at high output power, suitable for xDSL, transformer, solenoid, CRT yoke and high‑power audio applications. It operates from a single +5 V supply and is available in 8‑pin DIP and SO‑8 packages.
The datasheet provides detailed electrical specifications, typical performance curves, application notes for digital subscriber line drivers, and guidelines for power supply decoupling, thermal management, and output protection.
| Operating Voltage Range | +5.0 V |
|---|---|
| Quiescent Current | 11 mA |
| Peak Current (Continuous) | 230 mA |
| Differential Output Voltage Swing | 9.6 Vp‑p |
| Fixed Differential Gain | 3 V/V |
| 3‑dB Bandwidth | 8 MHz |
| Total Harmonic Distortion (100 kHz) | -65 dBc |
| Differential Input Resistance | 10 MΩ |
| Temperature Range | -40 °C to +85 °C |
The DRV1100 is designed to operate from a single +5 V supply.
It can deliver up to 230 mA peak continuous output current.
The device provides a fixed differential gain of 3 V/V.
Typical quiescent current is about 11 mA at +5 V supply.
