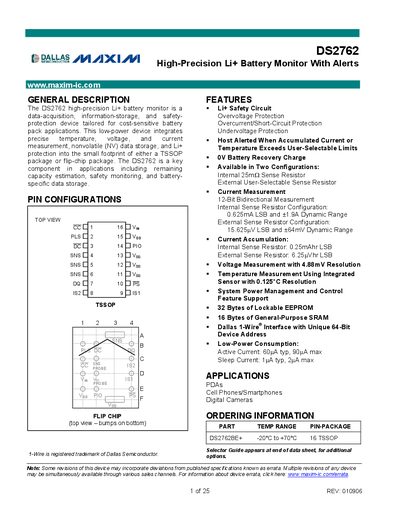

The DS2762 is a high-precision Li+ battery monitor tailored for cost-sensitive battery pack applications. It integrates precise temperature, voltage, and current measurement, nonvolatile (NV) data storage, and Li+ protection into the small footprint of either a TSSOP package or flip-chip package.
The DS2762 is a high‑precision Li+ battery monitor that integrates temperature, voltage, and current measurement, non‑volatile data storage, and safety‑protection features in a compact TSSOP or flip‑chip package. It is intended for cost‑sensitive battery‑pack applications such as PDAs, cell phones, and digital cameras.
The document provides absolute maximum ratings, recommended operating conditions, detailed electrical characteristics, pin descriptions, and a selector guide for the various package and sense‑resistor options. It also includes a block diagram, application example, and ordering information.
| Temperature Resolution | 0.125 °C |
|---|---|
| Voltage Resolution | 4.88 mV |
| Active Current | 6 µA typ, 10 µA max |
| Sleep Current | 1 µA typ, 2 µA max |
| Lockable EEPROM Size | 32 Bytes |
| General‑Purpose SRAM Size | 16 Bytes |
| Package Type | TSSOP (DS2762BE+ 16 TSSOP) |
The DS2762 measures temperature with a resolution of 0.125 °C.
The voltage resolution is 4.88 mV.
Active current is 6 µA typical and up to 10 µA max; sleep current is 1 µA typical and 2 µA max.
It includes over‑voltage, over‑current/short‑circuit, and under‑voltage protection, plus host alerts when accumulated current or temperature exceed user‑selectable limits.
