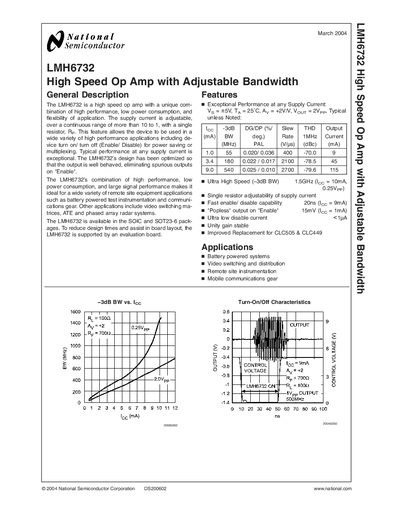

The LMH6732 is a high speed op amp with a unique combination of high performance, low power consumption, and flexibility of application.
The LMH6732 is a high‑speed operational amplifier with adjustable supply current and low power consumption, suitable for remote‑site equipment, video switching, and mobile communications. Its performance includes a 1.5 GHz -3 dB bandwidth at 10 mA supply current and a well‑behaved output that eliminates spurious signals on enable.
The document lists absolute maximum ratings, operating conditions, detailed electrical characteristics, connection diagrams, ordering information for SOIC and SOT23‑6 packages, and physical dimensions. It also contains notes on life‑support policy and banned substance compliance.
| -3dB Bandwidth | 1.5 GHz (Ig = 10 mA, 0.25 Vpp) |
|---|---|
| Supply Current Range | adjustable over >10 : 1 ratio |
| Closed‑Loop Output Current | 75 mA to 115 mA |
| Rise Time (2 V step) | 0.8 ns |
| Input Offset Voltage | +3.0 mV to +8.0 mV |
| Package Options | SOIC and SOT23‑6 |
It is available in 8‑pin SOIC and 6‑pin SOT23‑6 packages.
The typical -3 dB bandwidth is 1.5 GHz.
The rise time is 0.8 ns.
