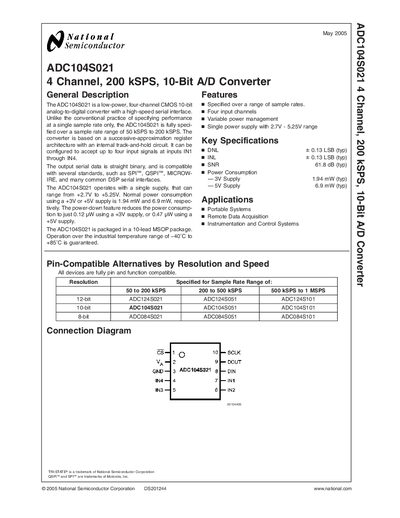

The ADC104S021 is a low-power, four-channel CMOS 10-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC104S021 is fully speci- fied over a sample rate range of 50 kSPS to 200 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROW- IRE, and many common DSP serial interfaces. The ADC104S021 operates with a single supply, that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 1.94 mW and 6.9 mW, respec- tively. The power-down feature reduces the power consump- tion to just 0.12 µW using a +3V supply, or 0.47 µW using a +5V supply. The ADC104S021 is packaged in a 10-lead MSOP package. Operation over the industrial temperature range of −40˚C to +85˚C is guaranteed.
The ADC104S021 is a low‑power, four‑channel CMOS 10‑bit analog‑to‑digital converter with a serial interface. It operates from a single supply (2.7 V‑5.25 V) and offers a sample‑rate range of 50 kSPS to 200 kSPS.
The document provides ordering information, pin descriptions, electrical characteristics, timing specifications, performance graphs, and application notes for power‑management and analog‑input design.
| Resolution | 10 bits |
|---|---|
| Number of Input Channels | 4 |
| Supply Voltage Range | 2.7 V – 5.25 V |
| Sample‑Rate Range | 50 kSPS – 200 kSPS |
| Typical Power Consumption (3 V) | 1.94 mW |
| Typical Power Consumption (5 V) | 6.9 mW |
| Differential Non‑Linearity (DNL) | +0.13 LSB (typ) |
| Integral Non‑Linearity (INL) | +0.13 LSB (typ) |
It operates from a single supply between 2.7 V and 5.25 V.
The device provides four analog input channels (IN1‑IN4).
Typical power consumption is 1.94 mW at 3 V.
The converter can sample up to 200 kSPS.
