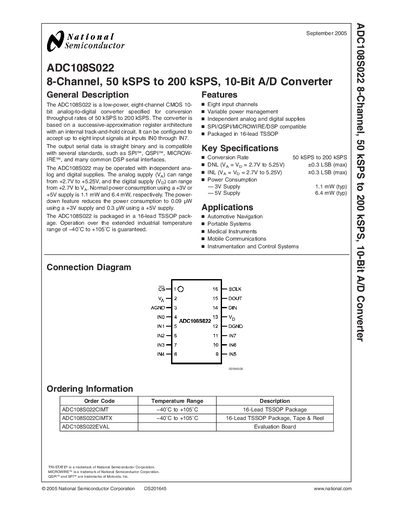

The ADC108S022 is a low-power, eight-channel CMOS 10-bit analog-to-digital converter specified for conversion throughput rates of 50 kSPS to 200 kSPS. It features low power consumption, variable power management, independent analog and digital supplies, SPI/QSPI/MICROWIRE/DSP compatibility.
The ADC108S022 is a low‑power, eight‑channel CMOS 10‑bit analog‑to‑digital converter specified for conversion rates of 50 kSPS to 200 kSPS. It uses a successive‑approximation register architecture with an internal track‑and‑hold circuit and supports independent analog and digital supplies.
The device is supplied in a 16‑lead TSSOP package, operates from +2.7 V to +5.25 V supplies, and consumes as little as 0.09 µW in shutdown mode. Detailed electrical characteristics, timing diagrams, and layout recommendations are provided for designers.
| Number of Input Channels | 8 |
|---|---|
| Resolution | 10 bits |
| Conversion Rate | 50 kSPS to 200 kSPS |
| Supply Voltage Range | +2.7 V to +5.25 V |
| Package | 16‑lead TSSOP |
The ADC108S022 provides eight analog input channels (INO through IN7).
The analog supply voltage may range from +2.7 V to +5.25 V.
It is offered in a 16‑lead TSSOP package.
