LM150/LM350A/LM350 3-Amp Adjustable Regulators
The LM150 series of adjustable 3‑terminal positive voltage regulators provide up to 3 A output over a 1.2 V to 33 V range. They include internal overload protection such as current limit, thermal overload, and safe‑area protection, and can be used in a variety of applications from power supplies to battery chargers.

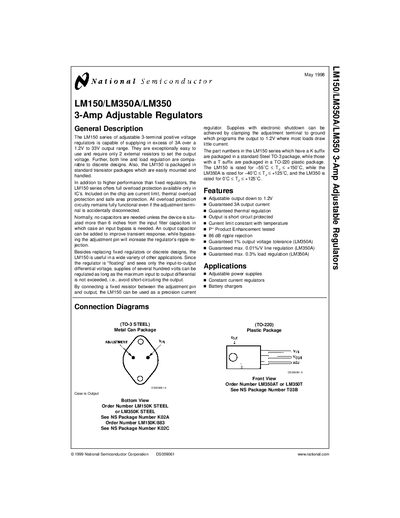

The document contains electrical characteristics, absolute maximum ratings, typical performance curves, application hints, and mechanical dimensions for both the Steel TO‑3 (K suffix) and TO‑220 plastic (T suffix) packages. It also includes a life‑support policy disclaimer and contact information for National Semiconductor.
| Output Current | 3 A |
|---|---|
| Output Voltage Range | 1.2 V – 33 V |
| Reference Voltage | 1.25 V |
| Line Regulation (typ) | 0.01 %/V |
| Ripple Rejection | 86 dB |
| Package Types | Steel TO‑3 (K) and TO‑220 plastic (T) |
The LM150 develops a nominal 1.25 V reference voltage between the output and adjustment terminals.
Devices with a K suffix use a standard Steel TO‑3 metal can package, while those with a T suffix use a TO‑220 plastic package.
The regulators are guaranteed to deliver up to 3 A of output current.
