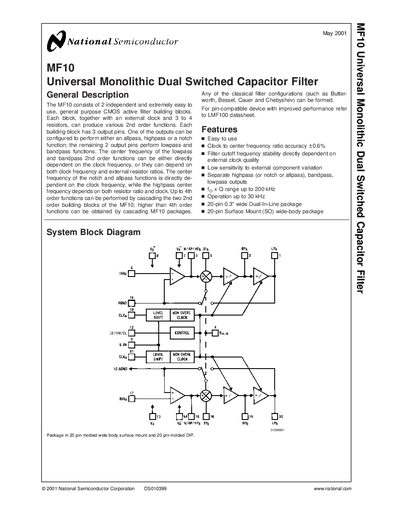

MF10 Universal Monolithic Dual Switched Capacitor Filter
The MF10 consists of two independent CMOS active‑filter blocks that can be configured for a variety of second‑order functions. Each block provides separate low‑pass, band‑pass, high‑pass, notch or all‑pass outputs, and multiple blocks can be cascaded for higher‑order filtering.
Features include a wide supply voltage range (9‑14 V), clock‑to‑frequency accuracy of 0.6 %, low sensitivity to external components, and output pins capable of sourcing 3 mA and sinking 1.5 mA. The device is offered in a 20‑pin DIP and a 20‑pin surface‑mount wide‑body package.
| Clock Frequency Range | 5 kHz to 1 MHz |
|---|---|
| Output Current Capability | Source 3 mA, Sink 1.5 mA |
| Package Types | 20‑pin DIP and 20‑pin surface‑mount wide‑body |
Each output can source up to 3 mA and sink up to 1.5 mA.
The MF10 is offered in a 20‑pin dual‑in‑line package and a 20‑pin surface‑mount wide‑body package.
