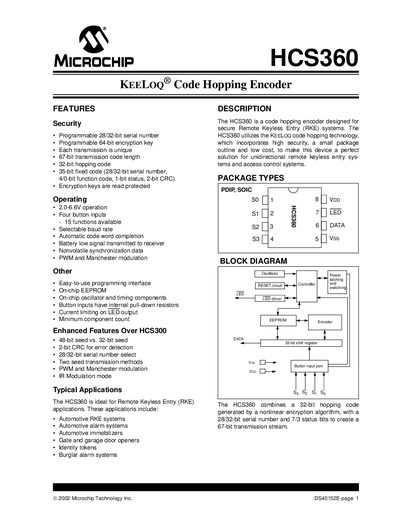

The HCS360 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. It features a programmable 28/32-bit serial number and 64-bit encryption key, unique transmission for each transmission, 67-bit transmission code length, 32-bit hopping code, and 35-bit fixed code (including serial number, function code, status, and CRC).
The HCS360 is a KEELOQ® code hopping encoder designed for secure Remote Keyless Entry (RKE) systems such as automotive entry, garage door openers, and alarm systems. It provides a 67‑bit transmission code and programmable security parameters.
Key features include a 2.0‑6.6 V operating range, four button inputs, selectable baud rates, on‑chip EEPROM (192 bits) for storing a 64‑bit encryption key, serial number, and synchronization counters, and support for PWM or Manchester modulation.
| Operating voltage | 2.0‑6.6 V |
|---|---|
| Button inputs | 4 |
| Transmission code length | 67 bits |
| Hopping code length | 32 bits |
| Serial number size | 28/32‑bit selectable |
| Encryption key size | 64 bits |
| EEPROM memory | 192 bits (12 × 16‑bit words) |
| Synchronization counter size | 16 bits |
| Seed code size | 48 bits |
The device operates from 2.0 V to 6.6 V.
It provides four button inputs.
The encoder contains 192 bits of EEPROM memory, organized as 12 × 16‑bit words.
Each transmission uses a 67‑bit code length.
