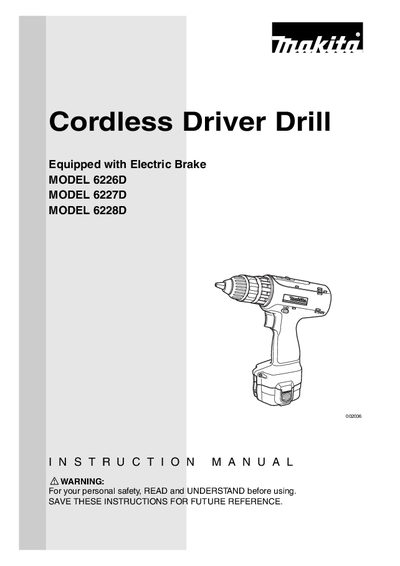

This is a cordless driver drill equipped with electric brake, it can be used for drilling steel, wood and machine screws.
This manual covers safety rules, proper handling, and maintenance for the Makita cordless driver drill. It includes general safety instructions such as keeping the work area clean, avoiding explosive atmospheres, wearing eye protection, and ensuring the switch is off before inserting or removing the battery cartridge.
The specification section lists key performance data like no‑load speeds, overall length, net weight, and wood‑screw capacity. Additional sections describe the functional description of the tool, battery charger operation, service information, and warranty details.
| No‑load speed (high) | 0 – 1,100 /min |
|---|---|
| No‑load speed (low) | 0 – 350 /min |
| Overall length | 210 mm (8‑1/4″) |
| Net weight | 1.4 kg (3.1 lbs) |
| Wood‑screw capacity | 5.1 × 38 mm |
Keep the work area clean and well lit, avoid operating in explosive atmospheres, wear eye protection, and make sure the switch is off before inserting or removing the battery cartridge.
Insert the battery cartridge into the charger, plug the charger into a proper AC source, and the charging light will flash red while charging; it goes out when charging is complete and the charger then switches to trickle‑charge mode.
Makita provides a one‑year warranty from the date of original purchase, covering defects in workmanship and materials.
