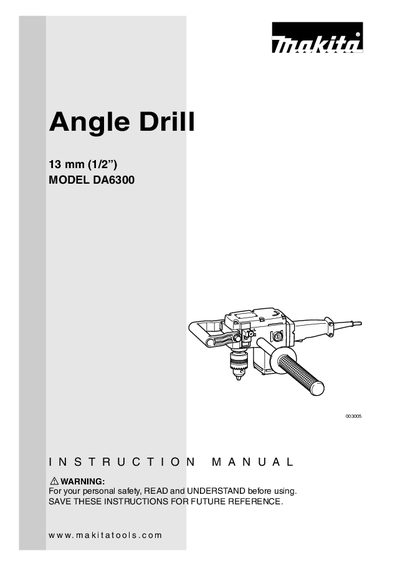

This document is an instruction manual for the Makita Angle Drill 13mm (1/2”) model DA6300. The document includes specifications, general safety rules, and usage instructions for the product.
This manual covers the Makita DA6300 angle drill, a 13 mm (1/2") tool designed for drilling and augering in wood, steel, and other materials. It includes the tool’s specifications, safety rules, assembly instructions, and service procedures.
The document emphasizes personal and electrical safety, proper use of accessories, and maintenance steps. It also lists warranty terms, factory service center contacts, and recommended extension‑cord sizes for safe operation.
| Model | DA6300 |
|---|---|
| No load speed (RPM) | High 1,200/min, Low 300/min |
| Net weight | 4.3 kg (9.5 lbs) |
| Auger bit size | 29 mm (1‑1/8") – 38 mm (1‑1/2") |
| Self‑feed bit capacity | 35 mm (1‑3/8") – 118 mm (4‑5/8") |
Use only three‑wire extension cords with three‑prong grounding plugs that are rated for the tool’s current draw.
Place the bit in the chuck as far as it will go, tighten the chuck by hand, then use the chuck key in the three holes and tighten clockwise.
Read and understand all instructions, keep the work area clean, wear eye protection, avoid loose clothing or jewelry, and ensure the tool is properly grounded.
Makita provides a one‑year warranty from the date of original purchase covering defects in workmanship and materials.
