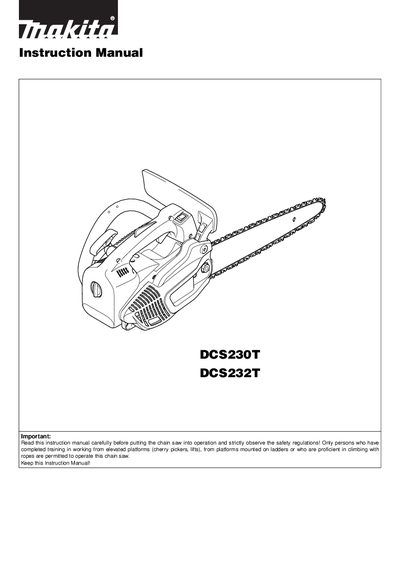

This document is an instruction manual for the Makita DCS230T and DCS232T chainsaws. It provides detailed information on the features, use and maintenance of the chainsaws. It is a very useful reference book.
This manual provides comprehensive safety guidelines, required protective equipment, and detailed operating procedures for the Makita DCS230T and DCS232T top‑handle chain saws, which are designed for tree surgery and care. It includes instructions for refuelling, starting, cutting techniques, and handling kick‑back, as well as a full list of symbols and safety precautions.
The document also covers routine maintenance tasks such as chain sharpening, cleaning, and part replacement, and supplies technical specifications, component diagrams, and first‑aid information. Service and spare‑part recommendations are included to ensure safe, long‑term use of the equipment.
| Stroke volume | 22.2 cm³ |
|---|---|
| Bore | 33 mm |
| Stroke | 26 mm |
| Max power at speed | 0.74 kW @ 8,000 rpm |
| Max torque at speed | 0.97 N·m @ 6,500 rpm |
| Idling speed / max engine speed | 5,000 / 10,000 min⁻¹ |
| Sound pressure level (workplace) | 95.0 dB(A) |
| Fuel tank capacity | 200 cm³ |
| Chain oil tank capacity | 190 cm³ |
| Mix ratio (fuel / two‑stroke oil) | 25:1 |
| Weight (fuel tank empty, without chain and guide bar) | 2.5 kg |
