This document describes the features and characteristics of DRAPERYOPENER SVSTEM, including motors and methods of control.

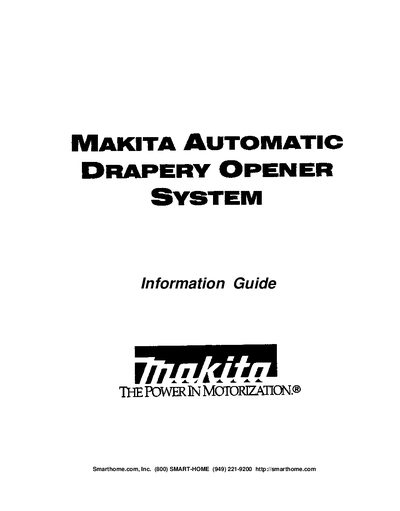

The manual introduces the Makita Automatic Drapery Opener System, describing the two motor types – the Parent motor (ZZCM101) and the Kid motor (ZZCM301) – and how the Parent motor controls up to two Kid motors and can address up to ten units per zone. It explains the motor’s power rating, safety features, and basic installation steps.
It then details the four control methods (infrared remote, timer, wall switch, and contact‑closure interface), wiring diagrams, address‑change procedures, and specifications for tracks and brackets. The document also includes technical data such as track material, finish, weight, and bracket mounting options.
| Track material | 6063‑T5 |
|---|---|
| Track finish | Powder Coat White or Clear Anodized |
| Weight per foot | 2.3 Lbs |
| Bracket mounting | Universal for Wall or Ceiling Mounting |
| Bracket projection (single track) | 2‑3/8″ to 4‑1/8″ |
| Bracket projection (double track, inside) | 2‑1/2″ to 4‑1/8″ |
| Bracket projection (double track, outside) | 5‑3/8″ to 7‑3/8″ |
| Motor drapery rating | 60 lb over a 20‑ft span |
Up to ten motors (one Parent and up to nine Kid motors) can be controlled per zone.
The timer can be set to open and close the draperies up to four times a day.
