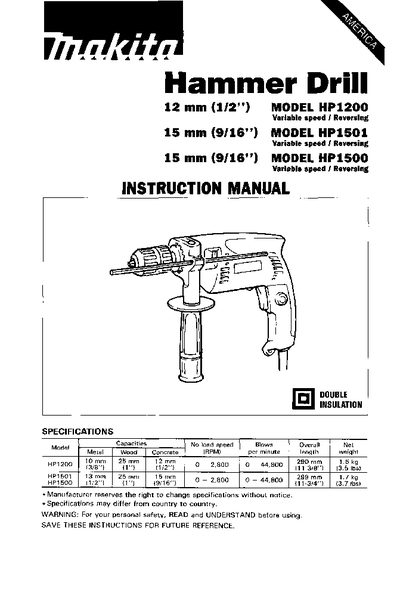

HP1200, HP1501 and HP1500 hammer drills are variable speed and reversible, with 12mm and 15mm drill bits, suitable for drilling in metal, wood and concrete.
This manual covers safety precautions, proper handling, and setup for the Makita HP1200 hammer drill. It includes warnings, personal‑protective‑equipment recommendations, and detailed instructions for installing the side grip, chuck, and depth gauge.
The document also lists technical specifications, part numbers, and a one‑year warranty. Users can find guidance on switching between hammering and rotation modes, using the reversing switch, and performing routine maintenance.
| Maximum drilling capacity (metal) | 10 mm |
|---|---|
| Maximum drilling capacity (wood) | 25 mm |
| Maximum drilling capacity (concrete) | 12 mm |
Swing the side grip to the desired position and secure it by turning clockwise.
