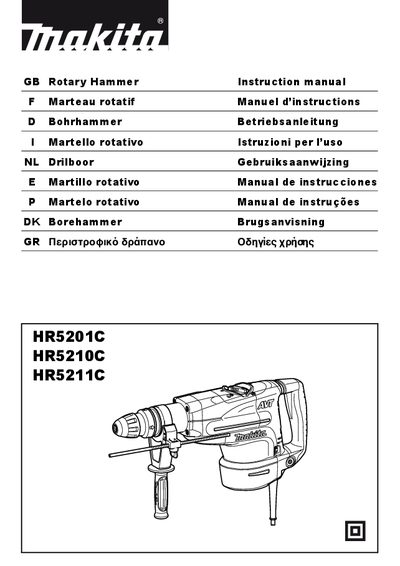

This manual introduces the features and usage of the models HR5201C, HR5210C, and HR5211C rotary hammers.
This manual introduces the rotary hammer’s general layout, safety symbols, and intended use for hammer drilling, chiselling, and demolition. It lists technical specifications such as bit size, speed range, and weight, and explains power‑supply requirements and double‑insulation features.
Detailed sections cover functional description, control switches, speed adjustment, action mode selection, torque limiter, indicator lamps, assembly steps, bit installation, depth gauge use, and step‑by‑step operating procedures for drilling, chipping, scaling, and demolition tasks.
| Carbide‑tipped bit size | 52 mm |
|---|---|
| Core bit length | 160 mm |
| No‑load speed | 130 – 260 rpm |
| Blows per minute | 1.075 – 2.150 |
| Overall length | 599 mm |
| Net weight | 10.8 kg (HR5201C) / 11.6 kg (HR5210C, HR5211C) |
