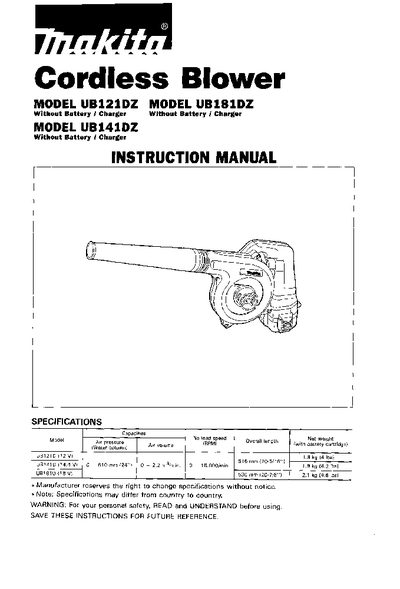

This is the instruction manual for a cordless blower. It contains information such as the model number, net weight, air pressure, and maximum speed.
This manual covers important safety instructions for using the Makita cordless blower, including battery handling, keeping the tool away from rain, and avoiding use as a toy. It also explains functional description such as battery cartridge installation, charging, and the correct use of accessories like nozzles and dust bags.
The document details assembly procedures, operation of the trigger switch, cleaning and maintenance steps, and lists compatible batteries and accessories. Warranty information and recycling instructions for the battery are also included.
| Weight (UB121DZ) | 1.8 kg (4 lbs) |
|---|---|
| Overall length (UB121DZ) | 516 mm (20-5/16") |
| Air volume (UB141DZ) | 0 – 2.2 m³/min |
| Air speed (UB141DZ) | 0 – 1800/min |
| Compatible batteries (UB121DZ) | 1200, 1220, 1202, 1202A, 1222, 1233, 1234, 1235 |
| Compatible batteries (UB141DZ) | 1422, 1433, 1434, 1435 |
| Compatible batteries (UB181DZ) | 1822, 1833, 1834, 1835 |
Align the tongue on the battery cartridge with the groove in the housing and slide it in until it clicks into place.
When the bag is full, release the fastener and empty the contents into a dust bin.
Wipe the outside of the tool with a cloth dampened in soapy water; do not use gasoline or thinner.
