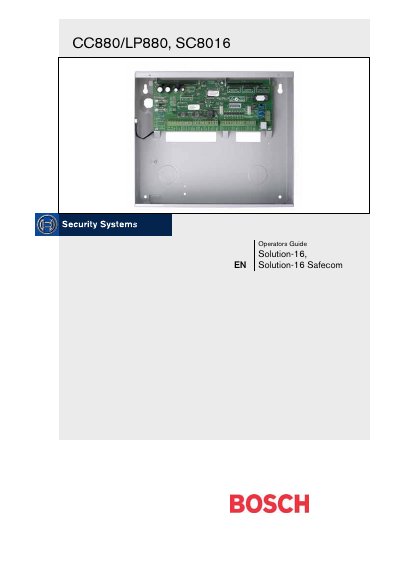

This is an operator guide that introduces the operation methods of Solution-16, Solution-16 Safecom CC880/LP880, SC8016 CC880/LP880, SC8016 products
This guide introduces the Bosch Solution‑16 control panel (models CC880, LP880 and SC8016) and explains its operating features, specifications and safety notes. It is intended for installers and users with appropriate expertise.
The manual details codepad indicators, arming and disarming procedures, user‑code management, alarm functions, fault analysis, output device control and testing. It also includes information on remote arming, domestic dialing and pager reporting.
| Temperature Range | 0 °C to +45 °C |
|---|---|
| Humidity | 10 % to 95 % |
| Power Source | TF008 Plug Pack – 240 V/18 V AC @ 1.3 A |
| Stand‑By Current | 65 mA |
| Current Draw In Alarm Condition | 115 mA |
| Current Draw In Alarm Condition With Codepad | 105 mA |
| Back‑Up Battery | 7 Ah/12 V DC rechargeable sealed lead‑acid |
| Dimensions (packed) | 306 mm × 262 mm × 84 mm |
| Weight | 2.5 kg (5.51 lb) |
Enter your user code followed by the [#] button, or hold down the [#] button until two beeps are heard; the AWAY indicator will display.
Up to 32 user codes can be programmed on the system.
The system operates from 0 °C to +45 °C.
It uses a 7 Ah/12 V DC rechargeable sealed lead‑acid battery.
