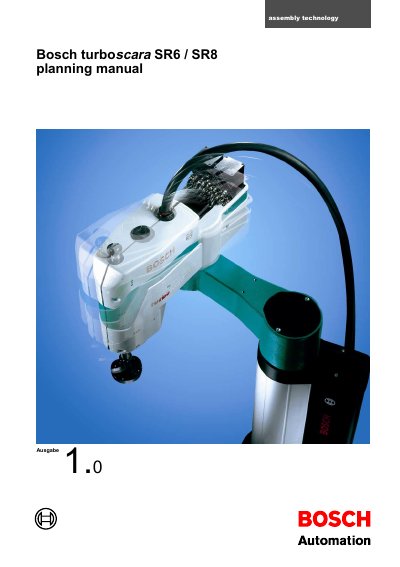

The Bosch Turbo Scara SR6 and SR8 are four‑axis swivel‑arm robots designed for high‑speed, high‑precision pick‑and‑place and assembly tasks. This manual provides detailed information on system components, the IQ200 controller, optional accessories, and planning guidelines for installation and layout.
Key sections include technical specifications, ambient condition requirements, ordering procedures, and service contacts. The document also contains a comprehensive appendix with index and additional notes for engineers and integrators.
| Maximum load (Sleeve ˘20 mm) | 5 kg |
|---|---|
| Maximum load (Sleeve ˘25 mm) | 8 kg |
| Rated load | 2 kg |
| Horizontal force (continuous / max) | 60 N / 150 N |
| Vertical force (continuous / max) | 200 N / 300 N |
| Torque (Axis 4) rated / max | 5 Nm / 10 Nm |
| Reach (SR6 / SR8) | 600 mm / 800 mm |
| Operating temperature range | 5 °C to 45 °C |
The robot can handle up to 8 kg when equipped with a 25 mm sleeve.
The robots are specified to operate between 5 °C and 45 °C.
It can deliver a continuous horizontal force of 60 N, up to 150 N maximum.
The rack is 19 inches wide (482.6 mm) and 300 mm deep.
