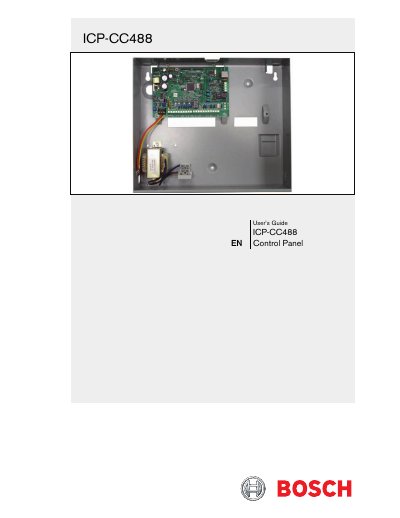

This document is the user manual of ICP-CC488 control panel
This guide introduces the ICP-CC488 control panel, its specifications, and the codepad interface. It explains the meaning of all indicators, how to arm and disarm the system, and how to manage user and radio codes.
Detailed sections cover fault analysis, testing procedures, telco arm/disarm sequences, domestic dialing, and installation notes. The document also includes wiring diagrams, output control, and a glossary of terms to help installers and end‑users configure the panel correctly.
| Temperature Range | 0°C to +45°C (+32°F to +113°F) |
|---|---|
| Humidity | 10% to 95% |
| Power Source | TF008 Plug Pack – 240 V/18 VAC @ 1.3 A |
| Stand‑By Current | 65 mA |
| Current Draw in Alarm Condition | 115 mA |
| Current Draw in Alarm Condition with Codepad | 105 mA |
| Back‑Up Battery | 6 Ah/12 VDC Rechargeable Sealed Lead Acid Battery |
| Dimensions | 306 mm x 262 mm x 84 mm (12.05 in. x 10.31 in. x 3.31 in.) |
| Weight | 2.5 kg (5.51 lb.) |
| Supplier Code | N771 |
The standby current is 65 mA.
Up to eight user codes can be programmed to operate the system.
It uses a 6 Ah/12 VDC rechargeable sealed lead‑acid battery.
