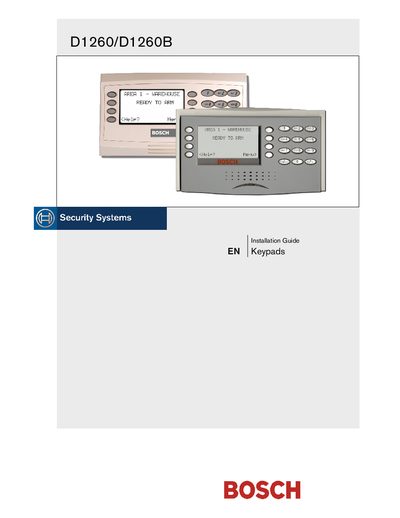

This document is an installation guide for the D1260/D1260B model from Bosch Security Systems. It provides information on the features, parts list, front panel features, internal features, installation steps, and programming of the control panel.
This guide provides step‑by‑step instructions for installing the Bosch D1260/D1260B keypad, a SDI‑bus compatible device with a four‑line by 20‑character LCD, illuminated keys, and a built‑in speaker. It includes parts lists, front‑panel feature descriptions, and internal component details.
The document also explains programming basics, DIP‑switch configuration, volume and brightness adjustments, and how to manage audible tones and service alerts. A specifications section summarizes key technical parameters for the keypad.
| Display | four‑line by 20‑character LCD |
|---|---|
| Connection | four‑wire flying lead connector |
| Speaker | built‑in speaker with multiple warning tones |
The keypad has ten numeric keys, two dedicated keys, and eight soft keys.
Enter a programmed passcode with the appropriate authority or press [COMMAND] + [4] to silence the tones.
