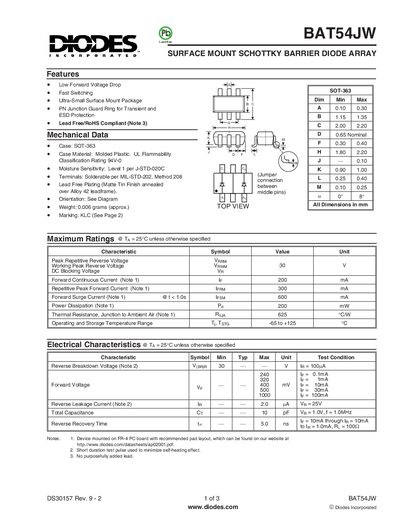

BAT54JW is a surface mount Schottky barrier diode array manufactured by Diodes Incorporated. It features a low forward voltage drop, fast switching, an ultra-small surface mount package, a PN junction guard ring for transient and ESD protection, and is lead free/RoHS compliant.
The BAT54JW is a ultra‑small surface‑mount Schottky barrier diode array packaged in SOT‑363. It features a low forward voltage drop, fast switching speed, and built‑in PN‑junction guard ring for transient and ESD protection. The device is lead‑free and RoHS compliant.
Maximum ratings include a peak repetitive reverse voltage of 30 V, forward continuous current of 200 mA, and power dissipation of 200 mW. Electrical characteristics such as forward voltage (400 mV at 10 mA) and reverse leakage are specified. Ordering information lists the BAT54JW‑7‑F in tape‑and‑reel form.
| Package | SOT‑363 |
|---|---|
| Forward Continuous Current (IF) | 200 mA |
| Forward Voltage at 10 mA | 400 mV |
| Power Dissipation | 200 mW |
| Thermal Resistance (J‑A) | 625 °C/W |
| Operating Temperature Range | -65 °C to +125 °C |
The typical forward voltage is about 400 mV when 10 mA flows.
It is supplied in a SOT‑363 surface‑mount package.
It is shipped as BAT54JW‑7‑F in tape‑and‑reel format.
