This product is a surface mount Schottky barrier diode array with low forward voltage drop, fast switching, and ultra-small packaging.

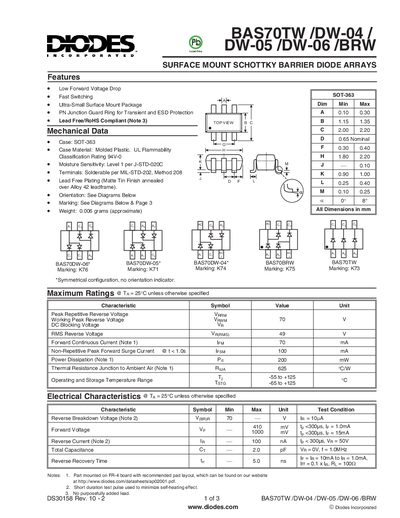

The BAS70 family consists of ultra‑small SOT‑363 surface‑mount Schottky barrier diode arrays with low forward voltage drop and fast switching. Features include a PN‑junction guard ring for ESD protection, lead‑free/RoHS compliance, and a moisture‑sensitivity level 1 rating.
The datasheet lists maximum ratings such as 70 V reverse voltage and 70 mA forward current, mechanical dimensions, thermal resistance, and packaging options (3000 units per tape & reel). Ordering codes, marking information, and legal notices are also provided, with full specifications available on the Diodes website.
They are supplied in a SOT‑363 surface‑mount package.
