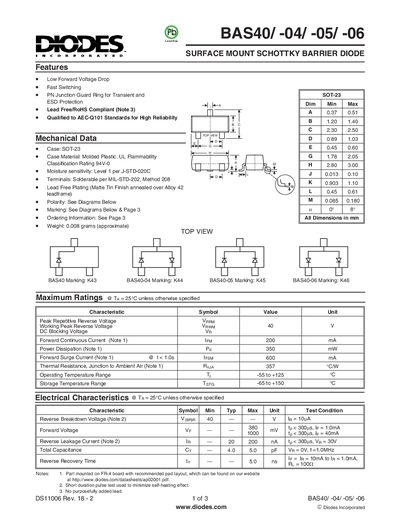

BAS40/ -04/ -05/ -06 is a surface mount Schottky barrier diode with features including low forward voltage drop, fast switching, PN junction guard ring for transient and ESD protection, etc.
The BAS40 series includes the BAS40, BAS40‑04, BAS40‑05, and BAS40‑06 surface‑mount Schottky barrier diodes in an SOT‑23 package. They feature low forward voltage drop, fast switching, a PN‑junction guard ring for transient and ESD protection, and are lead‑free/RoHS compliant.
Key electrical ratings are a 40 V peak reverse voltage, 200 mA continuous forward current, 350 mW power dissipation, and operation from –55 °C to +125 °C. Ordering information, marking codes, and packaging details are provided for tape‑and‑reel supply.
| Package | SOT‑23 |
|---|---|
| Peak Reverse Voltage | 40 V |
| Operating Temperature Range | -55 °C to +125 °C |
The BAS40 series diodes are supplied in an SOT‑23 surface‑mount package.
The devices are rated for a peak reverse voltage of 40 V.
Yes, they are lead‑free and RoHS compliant.
