FFPF10F150S is a high voltage, high reliability, high speed switch, low voltage drop diode manufactured by Fairchild Semiconductor. It is mainly used in horizontal deflection circuits.
The FPF10F150S is a high‑voltage, high‑reliability damper diode intended for horizontal deflection circuits and other applications requiring fast switching and low forward voltage. It is supplied in a TO‑220F package and includes features such as high speed switching and low forward voltage drop.

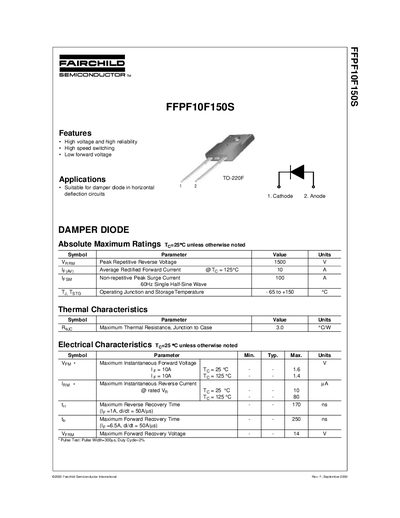

The datasheet lists absolute maximum ratings, thermal characteristics, and detailed electrical parameters such as a 1500 V peak repetitive reverse voltage, 1 A average forward current at 125 °C, and a 3.0 °C/W junction‑to‑case thermal resistance. Typical characteristic curves and package dimensions are also provided.
| Peak Repetitive Reverse Voltage (VRRM) | 1500 V |
|---|---|
| Average Rectified Forward Current (IF(AV)) | 1.0 A @ TC=125 °C |
| Non‑repetitive Peak Surge Current (IFSM) | 100 A (60 Hz single half‑sine wave) |
| Junction‑to‑Case Thermal Resistance (RθJC) | 3.0 °C/W |
| Maximum Reverse Recovery Time (trr) | 70 ns |
| Maximum Forward Recovery Time (tfr) | 250 ns |
| Maximum Forward Recovery Voltage (VFRM) | 14 V |
| Package Type | TO‑220F |
The diode is rated for a peak repetitive reverse voltage of 1500 V.
It can handle a non‑repetitive peak surge current of 100 A for a 60 Hz single half‑sine wave.
The maximum junction‑to‑case thermal resistance is 3.0 °C/W.
It is supplied in a TO‑220F package.
