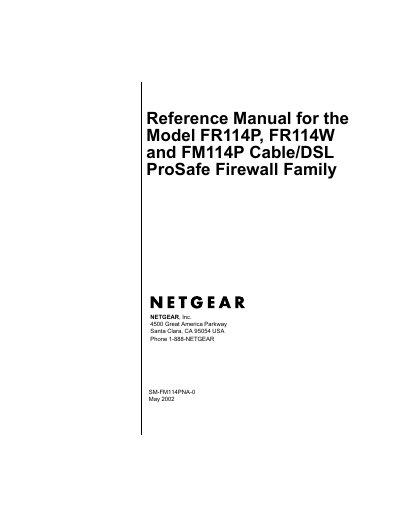

This reference manual introduces the features and characteristics of the NETGEAR FR114P, FR114W and FM114P Cable/DSL ProSafe Firewall Family products
This manual covers everything needed to install and operate the Netgear FR114P, FR114W, and FM114P Cable/DSL ProSafe Firewalls. It includes hardware setup, network preparation, basic and advanced configuration, wireless settings, and print‑server features.
Additional sections detail security features, remote management, maintenance procedures, technical specifications, and an extensive index to help users quickly locate information.
| Power Adapter Input (North America) | 120 V, 60 Hz |
|---|---|
| Power Adapter Input (UK/Australia) | 240 V, 50 Hz |
| Power Adapter Input (Europe) | 230 V, 50 Hz |
| Power Adapter Output | 12 V DC @ 0.8 A, 20 W max |
| Dimensions | 191 mm × 127 mm × 35 mm (7.4 × 5.1 × 1.3 in) |
| Weight | 0.8 kg (1.2 lb) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | up to 90 % non‑condensing |
| Local Ethernet Interface | 10BASE‑T or 100BASE‑TX, RJ‑45 |
| Internet Interface | 10BASE‑T or 100BASE‑TX, RJ‑45 |
| Supported Network Protocols | TCP/IP, RIP‑1, RIP‑2, DHCP, PPPoE |
Press the Default Reset button on the front panel to restore factory settings.
The firewall supports WEP (Wired Equivalent Privacy) configuration for wireless security.
Firmware upgrades are performed via the EPROM using the provided upgrade procedure.
Use the Setup Wizard to select and configure a Dynamic IP Account.
