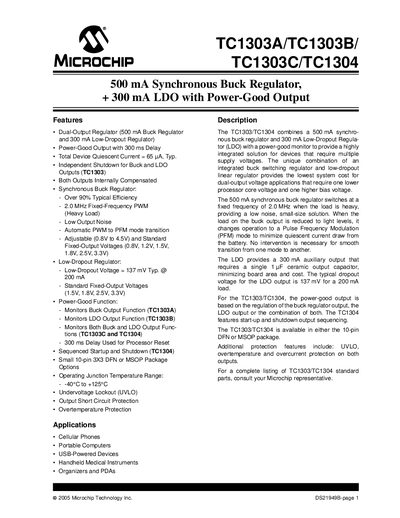

This datasheet introduces the features, functions, applications of TC1303A/TC1303B/ TC1303C/TC1304.
The TC1303/TC1304 family combines a 500 mA synchronous buck regulator and a 300 mA low‑dropout regulator (LDO) with a power‑good monitor, providing two regulated outputs for processor core and peripheral voltages. Features include over 90 % typical efficiency, a 2.0 MHz fixed‑frequency PWM that switches to PFM under light load, and selectable fixed or adjustable output voltages.
Typical applications are cellular phones, portable computers, USB‑powered devices, handheld medical instruments, organizers and PDAs. The device includes protection functions such as undervoltage lockout (UVLO), over‑temperature shutdown, and output short‑circuit protection, and is offered in a 10‑pin DFN or MSOP package.
| Maximum Buck Output Current | 500 mA |
|---|---|
| Maximum LDO Output Current | 300 mA |
| Typical Quiescent Current | 65 µA |
| Typical Efficiency | >90 % |
| Fixed‑Frequency PWM Frequency (Heavy Load) | 2.0 MHz |
| LDO Dropout Voltage (200 mA) | 137 mV |
| Input Voltage Range | 2.7 V to 5.5 V |
| Power‑Good Delay | 300 ms |
| Package Options | 10‑pin DFN or MSOP |
The buck regulator can deliver up to 500 mA of output current.
The LDO has a typical dropout voltage of 137 mV when delivering 200 mA.
They include undervoltage lockout (UVLO), over‑temperature shutdown, and output short‑circuit protection.
