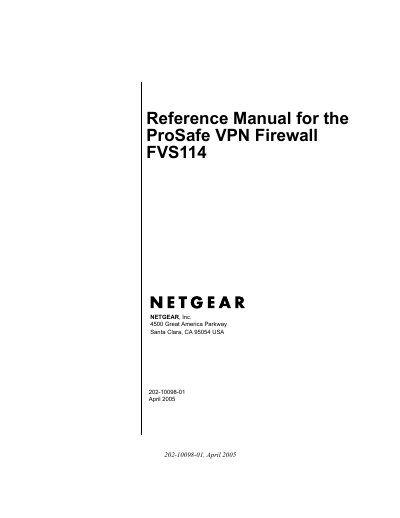

This Reference Manual provides information on the features and usage of the ProSafe VPN Firewall FVS114.
This reference manual covers the Netgear FVS114 ProSafe VPN Firewall, describing its features, hardware layout, and safety information. It is intended for business users and IT professionals who need to install, configure, and manage the firewall in a network environment.
The guide includes chapters on connecting the firewall, firewall protection and content filtering, basic and advanced VPN setup, maintenance tasks such as firmware upgrades and password changes, advanced WAN configuration, troubleshooting, and detailed technical specifications. Appendices provide networking basics, VPN concepts, and a glossary of terms.
| Network Protocols | TCP/IP, RIP‑1, RIP‑2, DHCP, PPPoE |
|---|---|
| Power Input (North America) | 120 V, 60 Hz |
| Power Output | 12 V DC @ 1.2 A (18 W max) |
| Dimensions | 39.6 × 254 × 178 mm (1.6 × 10 × 7 in) |
| Weight | 1.23 kg (2.72 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | Up to 90 % non‑condensing |
The firewall uses a 120 V, 60 Hz input in North America and provides a 12 V DC output at 1.2 A (up to 18 W).
The manual includes a section titled “Changing the Administrator Password” that explains the steps to reset it.
Section 7.5 “Upgrading the Firewall Software” provides the procedure for updating the firmware.
The device measures 39.6 × 254 × 178 mm (1.6 × 10 × 7 in).
