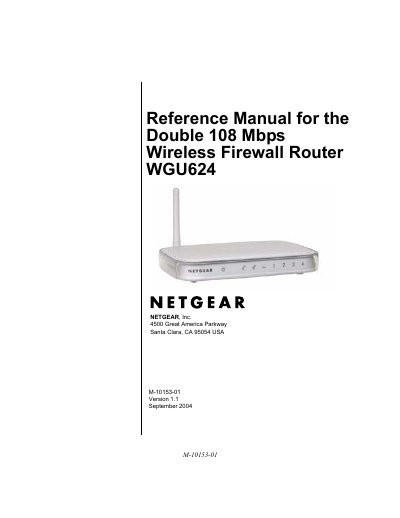

This is the reference manual for the NETGEAR WGU624 wireless firewall router
This reference manual covers all aspects of the Netgear WGU624 dual‑band 108 Mbps wireless firewall router, including key features, hardware overview, and safety notices. It guides users through connecting the router to the Internet, configuring wireless settings, and applying content‑filtering rules.
Later chapters detail advanced configuration options such as port forwarding, DHCP server setup, and remote management, as well as troubleshooting tips, firmware upgrades, and a full technical specifications appendix.
| Dimensions | 28 x 175 x 119 mm (1.1 x 6.89 x 4.68 in.) |
|---|---|
| Weight | 0.3 kg (0.66 lb) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | up to 90 % non‑condensing |
| Power adapter input (North America) | 120 V, 60 Hz |
| Power output | 5 V DC @ 2.8 A |
| Wireless data rates | 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| LAN interface | 10BASE‑T or 100BASE‑Tx, RJ‑45, autosensing, full/half‑duplex |
| WAN interface | 10BASE‑T or 100BASE‑Tx, RJ‑45, autosensing, full/half‑duplex |
The manual includes a troubleshooting section that explains possible causes such as signal strength, interference, or configuration settings that can limit throughput.
The FCC requires a minimum distance of 20 centimeters between the radiator and the user’s body.
The router can typically support up to 30 wireless nodes.
