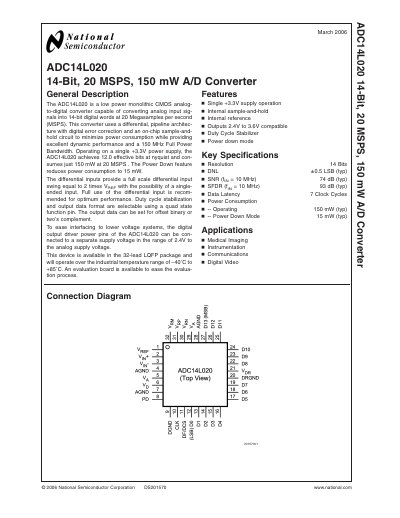

The ADC14L020 is a low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at 20 MSPS. It provides excellent dynamic performance and a 150 MHz Full Power Bandwidth.
The ADC14L020 is a monolithic CMOS A/D converter that delivers 14‑bit resolution at up to 20 MSPS while operating from a single +3.3 V supply. It features a differential pipeline architecture with on‑chip sample‑and‑hold, internal reference, and selectable output data formats (offset binary or two’s complement). Power consumption is 150 mW in normal mode and drops to 15 mW in power‑down mode.
Key specifications include a full‑power bandwidth of 150 MHz, DNL of ±0.5 LSB, SNR of 74 dB (typ) at 10 MHz, and a 32‑lead LQFP package. The device operates over an industrial temperature range of –40 °C to +85 °C and is suited for medical imaging, instrumentation, communications, and digital video applications.
| Resolution | 14 Bits |
|---|---|
| Sampling Rate | 20 MSPS |
| Power Consumption (typical) | 150 mW |
| Power Consumption (power‑down) | 15 mW |
| Full Power Bandwidth | 150 MHz |
| Supply Voltage | +3.0 V to +3.6 V |
| Package | 32‑lead LQFP |
| Operating Temperature | –40 °C to +85 °C |
| DNL (typ) | ±0.5 LSB |
| SNR (typ, 10 MHz) | 74 dB |
| SFDR (typ, 10 MHz) | 93 dB |
It operates from a single +3.3 V supply, with an allowed range of +3.0 V to +3.6 V.
Typical power consumption is 150 mW at 20 MSPS.
The maximum clock frequency is 20 MHz (minimum guaranteed).
It is available in a 32‑lead LQFP package.
