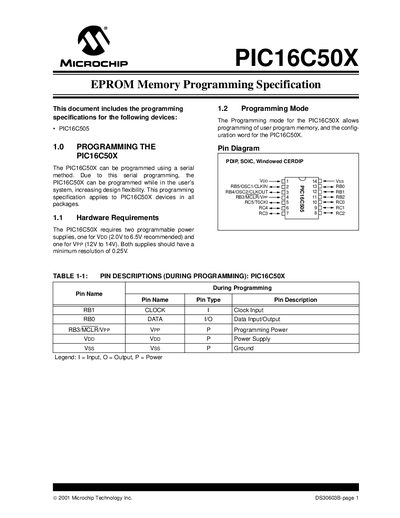

Microchip PIC16C50X EPROM Memory Programming Specification

This document is about the programming specification of PIC16C50X, including hardware requirements, programming mode, and how to enter programming mode.

Brand: MICROCHIP
Category: Other Electronics
Document type: Programming Manual
Language: English
Pages: 14
File format: PDF
File size: 200 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 8FB157BFC3A87C9485D2E587CFDE546A
PDF: Microchip PIC16C50X EPROM Memory Programming Specification PDF

About this manual

The PIC16C50X EPROM Memory Programming Specification describes the serial programming method used for all PIC16C50X devices, including the required hardware supplies, voltage levels, and programming algorithm.

It details the program/verify mode entry, command set, pulse timing, configuration word layout, code‑protection behavior, and recommended over‑programming procedures.

What's inside

Programming Overview
Hardware Requirements
Programming Mode
Program/Verify Mode Entry
Programming Method
System Requirements
Software Requirements
Configuration Word
Code Protection

Specifications

VDD supply range	2.0 V to 6.5 V
VPP supply range	12 V to 14 V
VPP fixed supply	13.0 V to 13.25 V
Supply resolution	0.25 V
Maximum current limit	≈100 mA
Current requirement	40 mA max
Programming pulse width	100 µs
Maximum programming attempts per word	8
Over‑programming factor	11 ×

Frequently asked questions

How many programming pulses may be applied to a single EPROM word?

Up to eight programming pulses are allowed per word.

What is the recommended programming pulse width for EPROM cells?

A pulse width of 100 µs is recommended for programming EPROM cells.

What over‑programming factor is used after a successful program?

The specification calls for applying 11 × the number of pulses used in normal programming.
