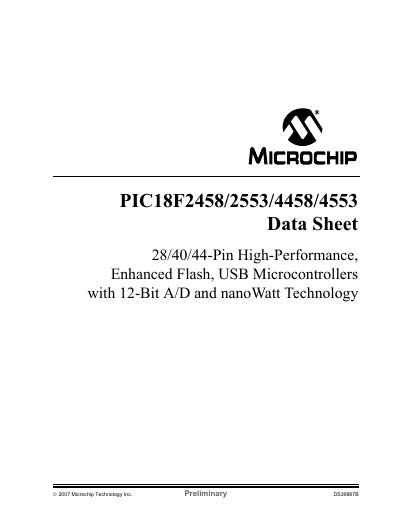

DS39887B PIC18F2458/2553/4458/4553 Data Sheet
The PIC18F2458/2553/4458/4553 family are high‑performance 28/40/44‑pin USB microcontrollers with 12‑bit A/D converters, nanoWatt power technology and USB 2.0 compliance. They support Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s) USB transfers, include an on‑chip USB transceiver, and offer power‑managed modes such as Run, Idle and Sleep.
Key features include up to 32 USB endpoints, 1 KB dual‑access RAM for USB, a 12‑bit, up to 13‑channel ADC, multiple timers, capture/compare/PWM modules, high‑current I/O (25 mA), and flexible oscillator options. Devices are offered in 28‑pin SPDIP/SOIC, 40‑pin PDIP/QFN and 44‑pin TQFP packages, with standard voltage (4.2‑5.5 V) and low‑voltage (2.0‑5.5 V) options.
| Operating Frequency | DC - 48 MHz |
|---|---|
| Program Memory (Bytes) | 24 576 (PIC18F2458/4458) / 32 768 (PIC18F2553/4553) |
| Data EEPROM Memory (Bytes) | 256 |
| I/O Ports | Ports A, B, C, (E) – 5 bidirectional ports on 40/44‑pin devices |
| Timers | 4 |
| USB Module | 1 per device, USB V2.0 compliant, Low Speed 1.5 Mb/s, Full Speed 12 Mb/s |
| Streaming Parallel Port (SPP) | Yes on 40/44‑pin devices, No on 28‑pin devices |
It supports Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s) USB transfers.
Sleep mode current is typically 0.1 µA.
The 28‑pin devices provide 10 input channels.
