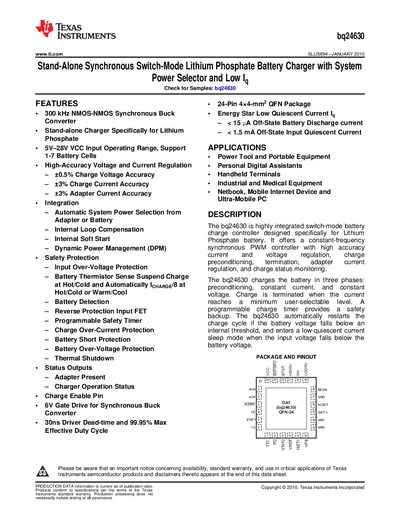

bq24630 is a highly integrated switch-mode battery charge controller designed specifically for Lithium Phosphate battery
The bq24630 is a highly integrated, stand‑alone synchronous switch‑mode charger designed for lithium‑phosphate (Li‑FePO4) battery packs. It supports 1‑7 series‑connected cells with a 5 V‑28 V input range and provides precise voltage and current regulation.
Key features include a 300 kHz NMOS‑NMOS synchronous buck converter, dynamic power management, multiple safety protections (over‑voltage, over‑current, thermal shutdown, etc.), and a 24‑pin 4 × 4 mm QFN package. The device is targeted at power tools, portable equipment, PDAs, industrial and medical equipment, and other portable electronics.
| Input voltage range (VCC) | 5.0 V – 28.0 V |
|---|---|
| Supported battery cells | 1‑7 cells |
| Switching frequency | 300 kHz |
| Package type | 24‑Pin 4×4 mm QFN |
| Off‑state input quiescent current | < 1.5 mA |
| Charge voltage regulation accuracy | ±0.7 % |
The device operates with an input voltage (VCC) from 5.0 V to 28.0 V.
It supports charging of 1 to 7 series‑connected lithium‑phosphate cells.
The off‑state input quiescent current is less than 1.5 mA.
