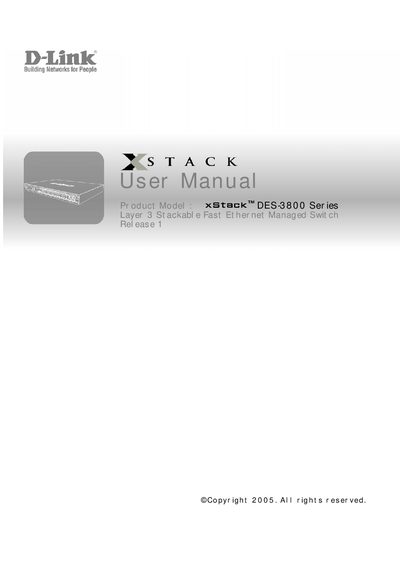

This document introduces the features of D-Link xStack DES-3800 series layer 3 stackable fast ethernet managed switch.
This manual covers safety precautions, installation procedures, and rack‑mounting guidelines for the XSTACK DES-3800 Series switch. It describes front‑panel and rear‑panel components, power connections, and required accessories.
The guide also details network configuration, including IP address assignment, VLAN and QoS settings, SNMP management, console access, and security features such as password protection and port security. Additional sections cover PoE configuration, system logging, and advanced protocols like IGMP snooping and OSPF.
Follow the steps in the "Installing the Switch in a Rack" section, which provides detailed instructions for mounting the unit in a standard 19" rack.
Use the console interface as described in the "Setting the Switch's IP Address using the Console Interface" section to assign an IP address.
SNMP can be configured via the "SNMP-Based Management" section, which outlines the necessary steps to enable and manage SNMP.
The manual advises following the "Protecting Against Electrostatic Discharge" guidelines to prevent damage from static electricity.
